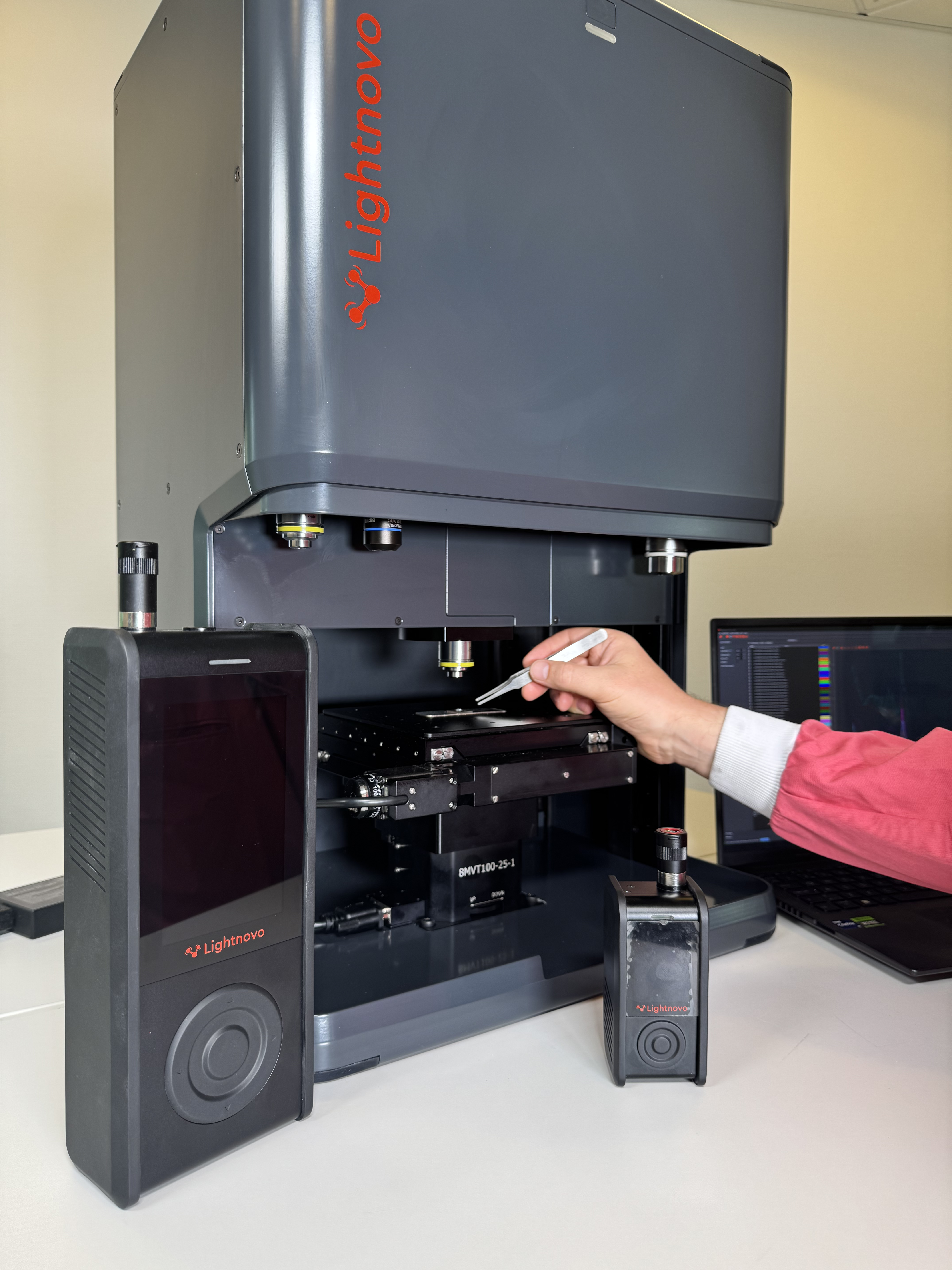

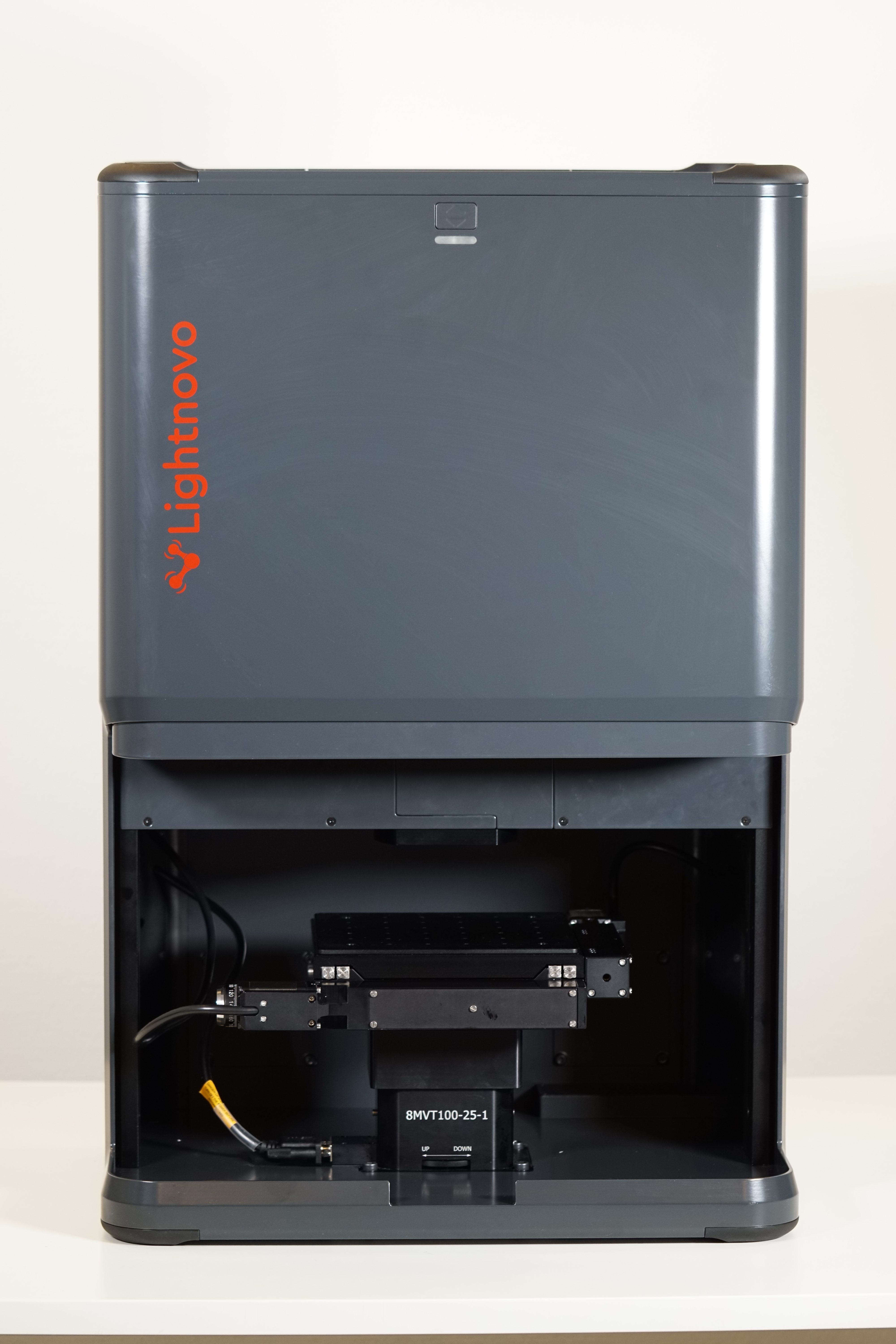

RG Raman microscope
With the RG Raman microscope Lightnovo provides an answer to demanding requirements for Raman spectroscopy. Different laser sources allow measurements at 405, 532, 633 or 785 nm.
The modular design consists of the microscope and one of the spectrometers from the RG or miniRaman series in order to adapt laser wavelength, measurement range or precision to individual requirements. In addition, Lightnovo promises operation in both upright and inverted setups.
The Miraspec software (Windows 7, 10) is connected via USB cable and allows not only data acquisition and operation of the microscope, but also the evaluation of the data, standard evaluations (background correction, peak mapping, peak areas), the creation of a peak database and a chemical evaluation of Raman maps via PCA, MCR and NNLS.
Applications
- Materials science, crystallography, geology
- Semiconductor technology
- Cosmetics
- Nanomaterials
- Testing of polymers
- Life sciences, pharmacy
Accessories
- Probes for different sample distances (6.25, 15 or 30 mm)
- Contact probes for tissue samples or scattering media (focal depth 0-20 µm, 40-60 µm or 80-120 µm)
- Lens covers
- Adapter für gängige Mikroskopobjektive (Olympus, Leica/Nikon, Zeiss)
- Adapter for common microscope objectives (Olympus, Leica/Nikon, Zeiss)
- Custom made microscope objectives on request
Specifications
Equipped with a RG Raman spectrometer
| Feature vs. model* | RG Raman 405 microscope | RG Raman 532 microscope | RG Raman 633 microscope | RG Raman 785 microscope |
|---|---|---|---|---|
| Laser wavelength | 405 nm | 532 nm | 633 nm | 785 nm |
| Power range on a sample | 0.1-30 mW | 0.1-150 mW | 0.1-50 mW | 0.1-100 mW |
| Spectral range | 50-3700 cm⁻¹ | 50-2500 cm⁻¹ | ||
| Spectral resolution | 3-5 cm⁻¹ | 2-4 cm⁻¹ | ||
| Signal-to-noise ratio** | 1000:1 | 1200:1 | 900:1 | 900:1 |
| Lateral resolution*** | 208 nm | 320 nm | 500 nm | 600 nm |
| Axial resolution*** | 600 nm | 750 nm | 1000 nm | 1500 nm |
| White light microscopy | Reflected with simultaneous visualization of laser spot and raman acquisition | |||
| Microscopy configuration | Up-right and inverted | |||

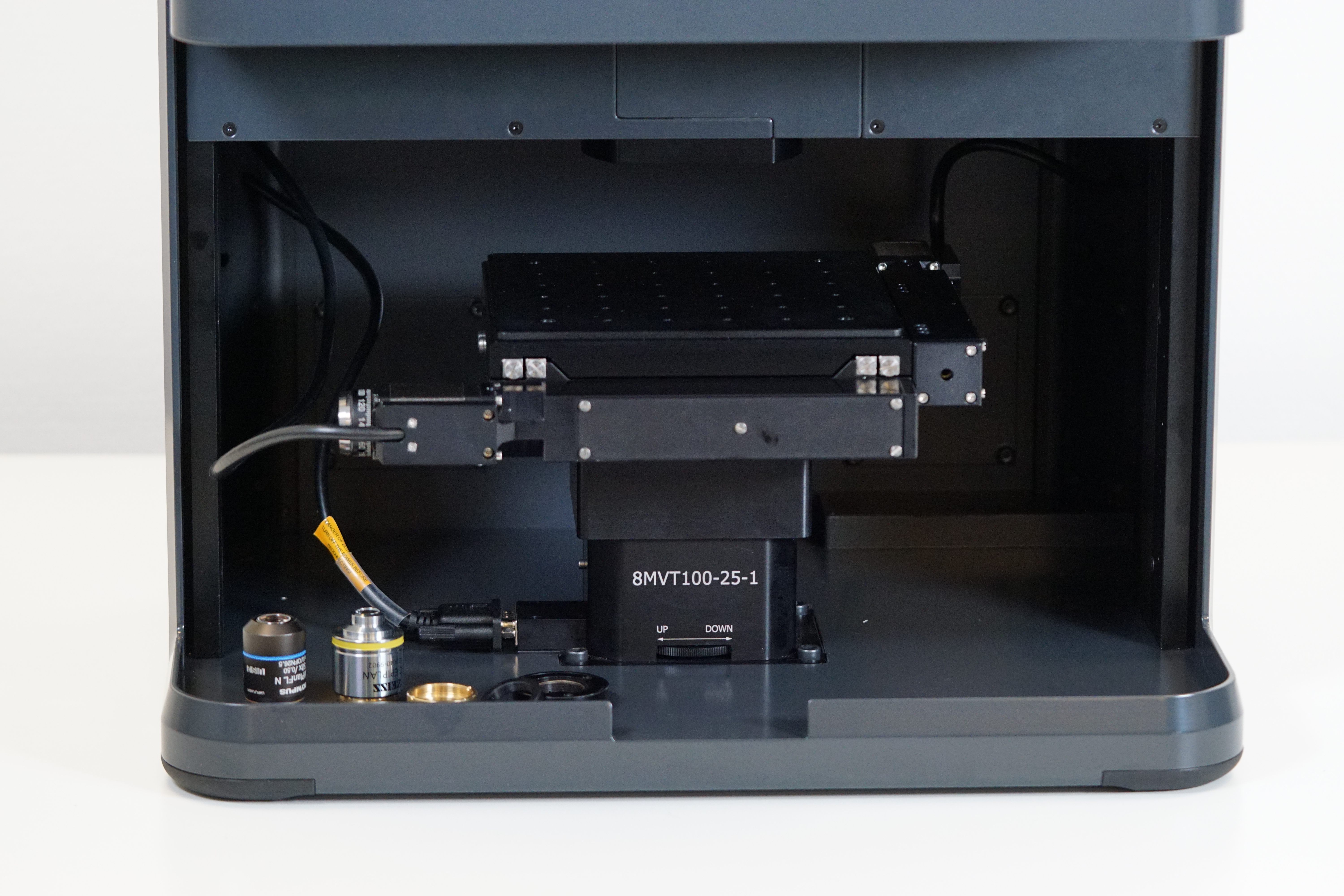

| Mapping travel range (XYZ) | 102 mm x 102 mm x 25 mm | |||
| Lateral step size | 500 nm | |||
| Axial step size | 500 nm | |||
| Physical dimensions | 400 mm x 320 mm x 475 mm (LxWxH) | |||
| Weight | 20 kg | |||
** determined as singal-to-noise ratio of a polystyrene spectrum at maximum laser power, integration time 0.3 s and 10 repetitions.
*** determined with microscope objective NA = 0.95 (100x magnification).
Equipped with a miniRaman spectrometer
| Feature vs. model* | RG Raman Standard microscope | RG Raman Power microscope | RG Raman SERS microscope | RG Raman Power Dual microscope | RG Raman Standard Dual microscope |
|---|---|---|---|---|---|
| Laser wavelength | 785 nm | 660 nm and 785 nm | |||
| Power range on a sample | 5-50 mW | 15-150 mW | 0.5-5 mW | 1-32 mW (660 nm) 15-150 mW (785 nm) | 1-32 mW (660 nm) 5-50 mW (785 nm) |
| Spectral range | 400-2700 cm⁻¹ | 2700-4500 cm⁻¹ (660 nm) 400-2700 cm⁻¹ (785 nm) |
|||
| Spectral resolution | 7-15 cm⁻¹ (slit size dependent; slit size can be customized) | ||||
| Signal-to-noise ratio** | 500:1 | 1000:1 | 100:1 | 1000:1 800:1 | 500:1 800:1 |
| Lateral resolution*** | 900 nm | 800 nm (660 nm) 900 nm (785 nm) |
|||
| Axial resolution*** | 3 µm | 2.5 µm (660 nm) 3 µm (785 nm) |
|||
| White light microscopy | Reflected with simultaneous visualization of laser spot and raman acquisition | ||||
| Microscopy configuration | Up-right and inverted | ||||
| Mapping travel range (XYZ) | 102 mm x 102 mm x 25 mm | ||||
| Lateral step size | 500 nm | ||||
| Axial step size | 500 nm | ||||
| Physical dimensions | 400 mm x 320 mm x 475 mm (LxWxH) | ||||
| Weight | 20 kg | ||||
** determined as singal-to-noise ratio of a polystyrene spectrum at maximum laser power, integration time 0.3 s and 10 repetitions.
*** determined with microscope objective NA = 0.95 (100x magnification).
